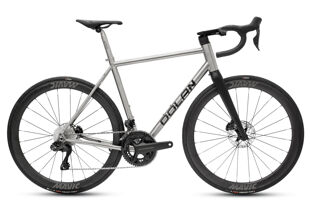

Dolan ADX Titanium Disc Road Bike - Shimano Ultegra R8170 Di2 12SPD

Image for illustration purpose only, for full product specification see bike builder below

When style and practicality on the road is desired, the Dolan Titanium ADX Disc ticks all the boxes.

Be Sportive, Audax, Touring or Commuting your chosen the riding style, the Dolan Titanium ADX Disc hand built using the highest quality Ti-3Al-2.5v Titanium tubing, engineered to create a ride comfortable all day long, is guaranteed to impress. Its minimalist brushed Titanium tubing incorporates internal cable routing, combined with integrated full-length mudguard and pannier mounting points, adding the option for practicality when needed.

Delivery Information
BIKES: Standard colours dispatched within 20 working days. Custom colours dispatched within 20 working days. FRAMESETS: Standard colours dispatched within 3/4 working days. Custom colours dispatched within 20 working days.
Payment Information
Cycle to work, 0% finance, credit and debit card, apple and google pay - find out more about all our payment options.
X-Small
  • 5'2" - 5'5"
  • Crank Length: 170mm
  • Stem: 9cm
  • Bar Width: 42cm
Small
  • 5'6" - 5'7"
  • Crank Length: 170mm
  • Stem: 10cm
  • Bar Width: 42cm
Medium
  • 5'8" - 5'9"
  • Crank Length: 172.5mm
  • Stem: 11cm
  • Bar Width: 44cm
Large
  • 5'10" - 5'11"
  • Crank Length: 172.5mm
  • Stem: 12cm
  • Bar Width: 44cm
X Large
  • 6'0" - 6'3"
  • Crank Length: 175mm
  • Stem: 12cm
  • Bar Width: 46cm
Size 50.5cm(XS) 52.5cm(S) 54.5cm(M) 56.5cm(L) 58.5cm(XL)
A Head Angle 72.5 73 73 73.5 74
B Head Tube Length (mm) 135 152 170 180 205
C Effective Top Tube Horizontal (mm) 531 539 549 567 580
D Seat Angle 74.5 74.0 74 73.5 73.5
E Seat Tube Length Center To Top (mm) 505 525 545 565 585
F Stack (mm) 550.1 568.7 585.9 597.3 623.1
G Reach (mm) 373 377 381 384.8 390.2
Frame Size
View More View Less
Alpina Carbon Disc Fork
Seatpost Option
Alpina 11/8
Titanium Seat Clamp H-CLP02 - 34.9mm
Dolan ADX-Disc Frame Inserts 2020
ADX Disc Axle Kit - Frame/Fork
Adjustable Fork Expander
Datatag Security
Chainset Size
View More View Less
Powermeter
Cassette Size
Ultegra RD-R8150 Di2 12-SPD - 34T Rear Derailleur
Ultegra FD-R8150 Di2 Brazed-On 12-SPD - Front Derailleur
Shimano Ultegra ST-R8170 Di2 LEFT/RIGHT- Levers
Shimano Ultegra BR-R8170 Flat Mount Disc Brake Calipers
Shimano MT800 CL Disc Rotor - 160mm(Front)
Shimano MT800 CL Disc Rotor - 140mm(Rear)
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Sugino T47 Ex-IDS24 68mm Steel Bottom Bracket
Shimano Di2 BTDN3001 Battery 3Port
Shimano EC300-Charger-1700MM-USB
Shimano Di2 1200mm SD300 Electric Wire (Set 1)
Shimano Di2 1200mm SD300 Electric Wire (Set 2)
Handlebar/Stem Model
Handlebar Size
View More View Less
Stem Size
View More View Less
Handlebar Tape
View More View Less
Saddle Option
View More View Less
Pedals
View More View Less
Wheelset
View More View Less
Tyre Type
Tyre Option
View More View Less
Mudguards
Pannier Rack
Trunk Bag Option
Garmin Edge
Cages
View More View Less
Bike Light Option
View More View Less
Product Information

When style and practicality on the road is desired, the Dolan Titanium ADX Disc ticks all the boxes.

Be Sportive, Audax, Touring or Commuting your chosen the riding style, the Dolan Titanium ADX Disc hand built using the highest quality Ti-3Al-2.5v Titanium tubing, engineered to create a ride comfortable all day long, is guaranteed to impress. Its minimalist brushed Titanium tubing incorporates internal cable routing, combined with integrated full-length mudguard and pannier mounting points, adding the option for practicality when needed.

Continued engineering developments led to the incorporation of the latest in disc brake technology combined with 12mm bolt thru axles, ensuring a solid connection between frame and wheels throughout your ride. Following years of continued research and development within our Titanium bicycle range, the introduction of the dropped chainstay is unveiled on the Dolan Titanium ADX Disc, allowing for a 32mm tyre clearance with a mudguard, ideal for any road you decide to ride.

Minimalist, stylish appearance, suitable for riding in any conditions, with the confidence of a 5-year warranty, the Dolan Titanium ADX will have heads turning out on the roads.

Specifications
  • Tyre Type: Clincher, Tubeless
  • Material: Titanium
  • Bike Type: Road
  • Bike Model: ADX (Disc)
  • Seatpost Diameter : 31.6mm
  • Brand: Dolan
  • Gender: Male, Female
