Gravel riding with a touch of class
Crafted with precision and excellence, the Dolan GXT showcases the pinnacle of bicycle engineering with its utilisation of industry-leading Ti-3Al-2.5v Titanium tubing. Meticulously hand welded, this bicycle embodies manufacturing beauty, combining superior craftsmanship with unparalleled performance. Engineered with a geometry that prioritises all-day comfort, the Dolan GXT effortlessly accommodates up to 50mm tyre clearances, now enhanced with the addition of a T47 threaded bottom bracket. Conquer any terrain with confidence, as the fully integrated cable routing ensures a sleek and uncluttered aesthetic. Furthermore, the implementation of 12mm bolt-thru axles reinforces the connection between wheel and frameset, guaranteeing both style and durability even in the most challenging environments.
Shop Now

GXT

Features

Aerodynamic Design

The all-terrain solution in an aero frame design. The GXT excels not only on gravel

T47 External BOTTOM BRACKET

T47 bottom brackets offer a more robust connection for the crankset, improving power transfer and elevating the overall performance of the bicycle.

Full Carbon Fork

For vibration damping and supreme handling on gravel, the full carbon fork is engineered to give you an edge.

Internal Cable Routing

With a supreme clean aero look, the internal routing streamlines speed and provides seamless integration with electronic shifters.

WHO IS IT FOR?

Crafted to cater to a diverse range of riders, from the intrepid explorer to the dedicated urban traveler, the Dolan GXT boasts integrated mudguard and pannier mounts, providing a customisable bike configuration tailored precisely to your needs.

Whether you're drawn to its sleek Titanium design, its ample tyre clearance for exploring uncharted territories, or the unmatched comfort of Titanium construction, the Dolan GXT promises enjoyment for all who ride it.

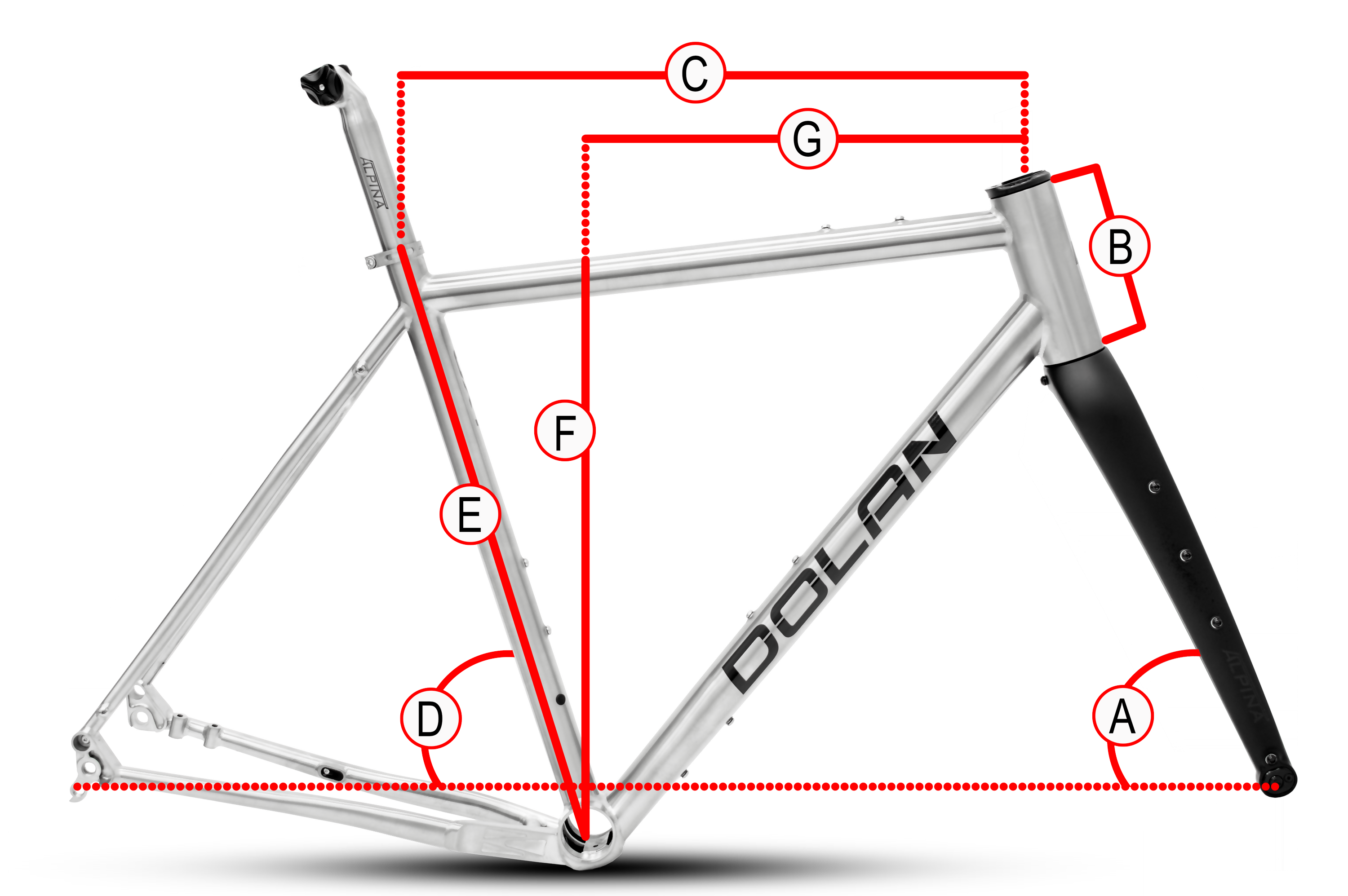

Geometry/Size Guide
Size 49cm 52cm 54cm 56cm 58cm
A Head Angle 70.5 71.5 71.5 72 72
B Head Tube Length (mm) 120 140 150 170 190
C Effective Top Tube Horizontal (mm) 520 535 550 565 580
D Seat Angle 74.5 74 73 73 73
E Seat Tube Length Center To Top (mm) 490 520 540 560 580
F Stack (mm) 533.9 556.6 566 586.9 606
G Reach (mm) 371.9 375.4 376.9 385.6 394.7

FAQS

Want to find out more about The Dolan GXT? What is the warranty? Or What does the GXT weigh? The Answers to these and more can be found below.

The Ti-3Al-2.5v Titanium weighs approximately.2.5.kg on a 54.5cm frame/Fork.

All Dolan branded frames and forks purchased after January 1st 2024 carry a lifetime warranty

The GXT has clearance for 43mm tyres for 700c and 48mm tyres for 650b wheels.

There are 4 sets of bottle cage mounts.

We recommend a maximum rider weight of 120kgs.

Yes, the frame has discreet mudguard mounts for fitting full length mudguards.

T47 BSA 85.5MM External

The frame takes flat mount hydraulic disc brakes

The GXT has mounts for a rear pannier rack and accommodate 20kgs of luggage with ease.

The GXC has thru axles of 12x100 front and 12x142 rear

Due to the many different systems people use we do not supply pedals with bikes.
