Geometry to favour an endurance position, oozing style, guaranteed to perform.

Our pride and joy in the endurance category. The Dolan Tuono which is focused around comfort, sees the inclusion of 12mm bolt thru axles, the latest in flat mount disc brake technology, paired with the option of an entirely minimalist appearance utilising the fully integrated cabling option whilst remaining functional with the independently interchangeable stem length and bar width. Industry leading super lightweight Toray T1000 carbon lay up, ensures power transfer second to none, whilst maintaining a frameset weight of 1.2kg giving you no excuse to not head to the hills for a long day in the saddle.

Shop Now

Tuono

Features

Full Internal Cable Routing

With a supreme clean aero look, the full internal routing streamlines speed and provides seamless integration with electronic shifters.

Toray T1000 Carbon Fibre

Engineered for elite performance: Toray T1000 Carbon Fiber—unmatched strength, lightweight precision, and the backbone of cutting-edge aerospace, automotive, and high-performance sports equipment.

Flat mount brake mounts

Sleek and streamlined stopping power: Flat mount brake mounts—engineered for superior aerodynamics, reduced weight, and enhanced braking precision on modern road and gravel bikes.

Who is it for?

Primary focus in the development of the Tuono was perfecting a comfortable endurance position, combined with a lightweight setup, ideal for those who enjoy longer days in the saddle. Fully hydraulic flat mount disc brakes paired with 12mm bolt thru axles ensures stopping performance is millimetre perfect, dialled in for those long descents after the ‘enjoyable’ time spent climbing your local hills.

Full internally routed cockpit options, utilising the independent bar and stem combinations allows for a sleek design whilst allowing practical adjustment options at a later date if required.

Be it a local club ride, the challenge of a 100mile century ride, or a foreign sportive, the Dolan Tuono’s endurance based geometry guarantees comfort whether the road is winding up and flowing downhill all day long.

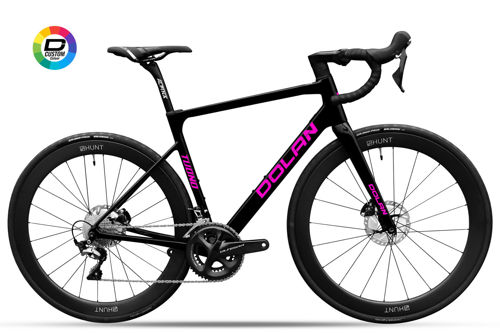

Please note: that due to the increase in craftsmanship required when producing a Custom-Colour Frame and Bike the dispatch time increases slightly up to 20 working days. The increase in time is due to the enhanced skill required when preparing, customizing and completing all projects in house.

X-Small

5' - 5'3"
Crank Length: 170mm
Stem: 8cm
Bar Width: 40cm

Small

5'4" - 5'7"
Crank Length: 170mm
Stem: 9cm
Bar Width: 42cm

Medium

5'8"- 5'10"
Crank Length: 172.5mm
Stem: 10cm
Bar Width: 44cm

Large

5'11" - 6'1"
Crank Length: 175mm
Stem: 11cm
Bar Width: 44cm

X Large

6'2" - 6'5"
Crank Length: 175mm
Stem: 12cm
Bar Width: 46cm

Size		X-Small	Small	Medium	Large	X-Large
A	Head Angle	70.8	71.7	72	73	73
B	Head Tube Length (mm)	120	138	157	172	195
C	Effective Top Tube Horizontal (mm)	516	530	546	560	580
D	Seat Angle	74.8	74.3	73.9	73.5	73
E	Seat Tube Length Center To Top (mm)	430	460	490	520	550
F	Stack (mm)	531.8	552.1	571.1	589.6	610.6
G	Reach (mm)	371.2	374.5	380.8	385	392.9
H	Rear Center (mm)	415	415	415	415	415
I	Front Center (mm)	585.9	587.6	594.5	594.5	608.8
J	Fork Offset	45	45	45	45	45
K	Fork Length	380	380	380	380	380
WB	Wheel Base	989.3	991	998.5	998.5	1012.9

Faqs

Want to find out more about The Dolan Tuono Disc? What is the warranty? Or What does the Tuono Disc weigh? The Answers to these and more can be found below.
